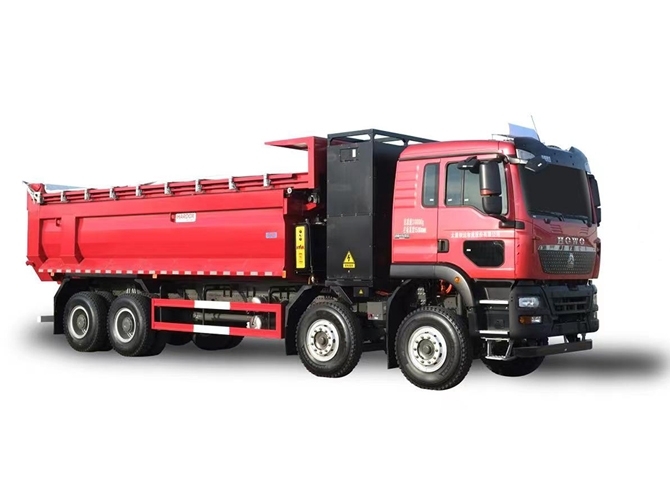

HOWO-TXEV in-plant transfer dump truck
Vehicle descriptive introduction: Weichai high power motor is matched with CATL battery to realize strong power and abundant driving range. The U-shaped expanded cargo compartment made of high-strength wearing plates features high capacity, high carrying capacity, and light dead weight.
Technical parameter
| Version | U-shaped expanded |
| Cargo compartment dimensions | 6800×2350×1500mm |
| Cargo compartment material | Hardox450 (Optional NM450) |
| Cargo compartment thickness | 6 for floor and 4 for side panels |
| Subframe | High-strength steel section + cross beam reinforced structure |
| Capping system | Lightweight electric tarpaulin capping |
| Hydraulic system | Hyva FCA169 |
Vehicle specification
| Overall dimensions (mm) | 10840×2550×3680 |
| Wheelbase (mm) | 1800+4425+1350 |
| Front/rear overhang (mm) | 1500/1765 |
| Manufacturer’s maximum gross mass (kg) | 31000 |
| Rated seating capacity (Person) | 2 |
